T600-BD NTP Time Synchronization Solution

Learn about our T600-BD NTP Time Synchronization Solution

T600-BD[Xinchuang+Pure Beidou+Dual Electricity]NTP network time server supports NTP/SNTP to provide high precision and high capacity timing for critical infrastructure. It adopts localized industrial motherboard, adapts Kirin OS, supports business network/management network isolation, independent configuration of multiple network ports and routing policy; supports bonding link redundancy and dual-machine hot standby/heartbeat detection to ensure continuous reliability. Support multi-constellation GNSS (pure BeiDou optional) + OCXO timekeeping, automatic holdover and smooth lockback; with anti-jamming/anti-spoofing detection alarms. Provide Web unified management, support SNMP/customized MIB access network management.

Learn about our T600-BD NTP Time Synchronization Solution

Important Features

Ultra High Bandwidth NTP Server
BeiDou reference level 1 clock server for critical infrastructure
High-performance domestic hardware platform adapted to Kirin OS
Multi-source, time-keeping, redundancy, link backups to improve system resilience
6 Gigabit Ethernet ports + 2 Gigabit optical ports as standard
Scalable 10G/25G/40G/100G/200G rates
Can be connected to another NTP server to form a 2-stage clock
Optionally supports high performance thermostat crystals with 24-hour accuracy <10µs
Support SSH, SSL, SCP, SNMP, CustomMIB, HTTPS, Telnet
Supports multiple layers of security with encryption, certificates, auditing, firewalls, and firmware updates
Fully compatible with IPv4 and IPv6 network environments
Advanced anti-jamming and spoofing detection algorithms enhance anti-spoofing reliability
Nanosecond time accuracy relative to UTC
Reliability MTBF greater than 100000 hours
Secure and efficient user interface for the Web
Architectural design compatible with single, redundant or DC power supplies
Industrial-grade design to meet long-term stable operation and engineering site delivery requirements

The time foundation for building a trusted network

In today's accelerated evolution of digital infrastructure, time is not only a reference for network operation, but also the core foundation to support the safe and controllable operation of key systems.T600 Trusted Time Server integrates high-precision timing capability and multi-level security mechanism to build up a unified, trustworthy, and auditable time service platform, which has become the "Trusted Time Root" of the modern network system. "T600 Trusted Time Server is the core foundation of the modern network system.

Product Highlights

High-performance multi-system GNSS timing reception optional

High performance multi-system GNSS timing receiver module supporting GPS, GLONASS, Galileo and BeiDou systems. Designed for precision timing, it supports time pulse (1PPS) output and clock synchronization applications with fast locking, high interference immunity and ns-level timing accuracy.

Support hardware-level security module

Supports the national encryption SM2/SM3/SM4 algorithms and secure boot mechanism to strengthen the trusted protection of time sources. It can integrate USB Key hardware encryption modules and supports SSH, HTTPS, and REST API authentication mechanisms to adapt to zero-trust network requirements.

Full REST API interface support

T600 series time servers provide a complete REST API interface, following the industry-standard OpenAPI 3.0 specification, which supports programmatic access, control and monitoring of device operation status via HTTPS. Whether it is automated management of NTP/PTP configuration parameters or real-time access to timing channels, interface status and alarm events, developers can easily integrate it through standard JSON requests.

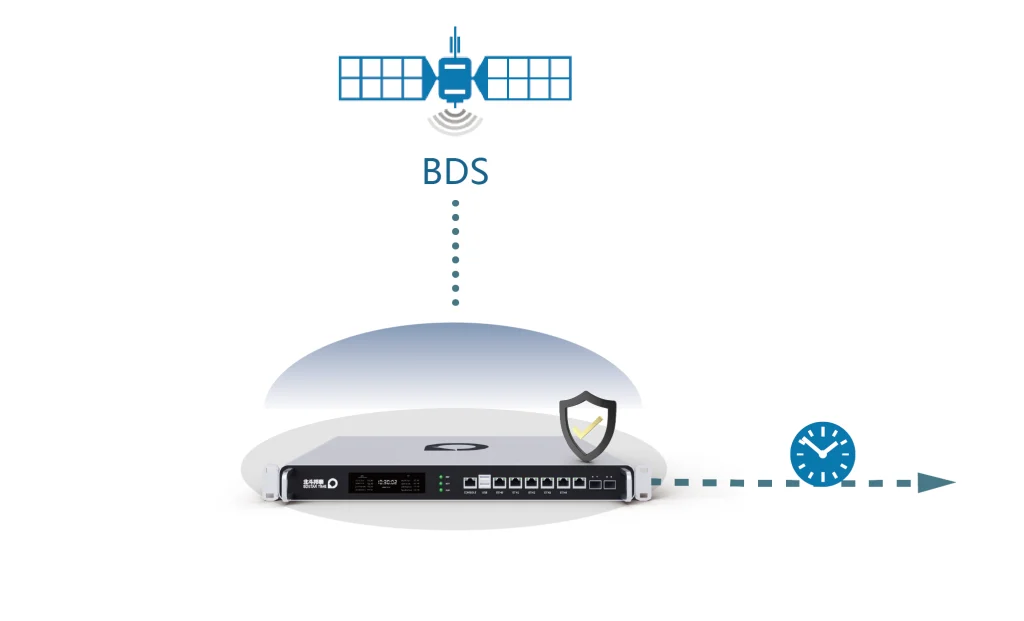

Advanced anti-jamming and spoofing detection algorithms

GNSS signal interference and spoofing have always been the biggest challenges faced by the industry. Compass PONTEC has recently launched a fully autonomous and controllable anti-jamming high-precision receiver, which organically integrates timing and trusted time scale to build a network timing architecture with high security, redundancy and anti-spoofing capability, thus meeting the increasing demand for accurate and reliable time synchronization in today's critical infrastructure.

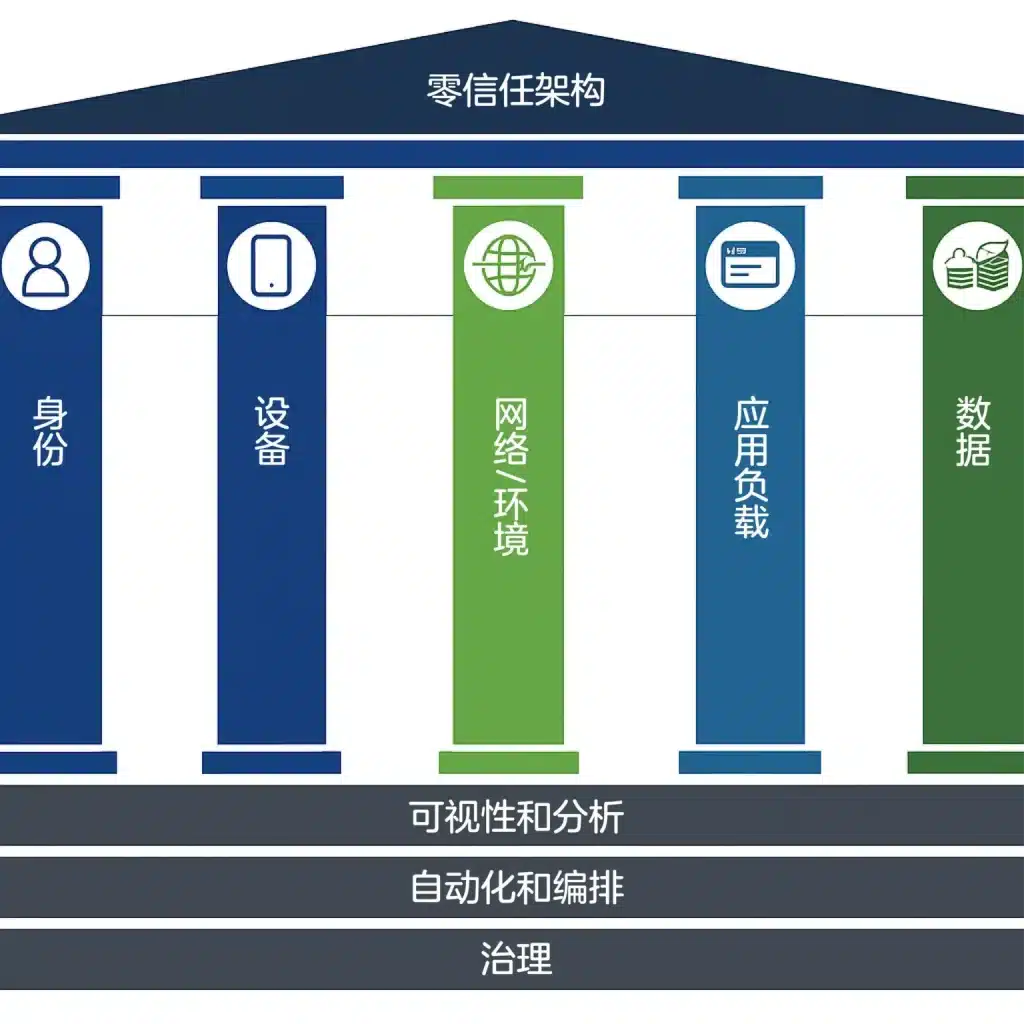

Secure and accurate time under zero-trust architecture

T600 NTP network time server can be used as enterprise "trusted time base", providing secure, verifiable and auditable time guarantee under zero-trust architecture. By integrating BeiDou trusted source, optional high stability intrinsic vibration and refined security control mechanism, T600 meets the core pillar requirements of zero-trust architecture, including user identity, device access, network boundary and behavior analysis, and provides accurate, trustworthy and traceable time support for various data operations.

Comprehensive Management System (Web GUI) BDSTAR.v1

Beidou Bontai has independently developed an integrated Web operation and maintenance platform for T600 series network time servers, which provides one-stop management capability of visual monitoring, security configuration, alarm notification, audit traceability and resource export for key scenarios such as government affairs/financial affairs/electric power/communication/data centers, etc. Users can complete the system operation and maintenance without logging in the command line. Without logging in the command line, users can complete the device timing status view, network isolation and redundancy configuration, NTP parameter configuration, alarm policy settings, log auditing and batch operation and maintenance, significantly reducing the threshold of system operation and maintenance and fault location time.

产品型号一览表

型号	GNSS参考	欺骗干扰检测	本地守时	Port	速率	operating system	硬件国产化	信创CPU	power supply	size
T100-BD	GNSS/纯北斗		——	1xRJ45	1Gbps	Linux	——	——	单路	1U
T600-BD	GNSS/纯北斗		——	6xRJ45	1Gbps	Linux/麒麟	可选	可选	单路	1U
T600-BDP	GNSS/纯北斗	可选	——	6xRJ45	1Gbps	Linux/麒麟	可选	可选	冗余热备	1U
T600-BDOCXO	GNSS/纯北斗	可选	恒温晶振	6xRJ45	1Gbps	Linux/麒麟	可选	可选	单路	1U
T600-BDOCP	GNSS/纯北斗	可选	恒温晶振	6xRJ45	1Gbps	Linux/麒麟	可选	可选	冗余热备	1U
T600-BDCDMA	GNSS+CDMA	可选	——	6xRJ45	1Gbps	Linux	可选	可选	单路	1U
T600-BDRBP	GNSS/纯北斗	可选	Rubidium atomic clock	6xRJ45	1Gbps	Linux/麒麟	可选	可选	冗余热备	2U
T600-LBDRBC	GNSS/纯北斗	可选	Rubidium atomic clock	6xRJ45,2xSFP+	1/10Gbps	Linux/麒麟	可选	可选	冗余热备	2U
T600-LBDRBP	GNSS/纯北斗	可选	Rubidium atomic clock	6xRJ45,4xSFP+	1/10/25Gbps	Linux/麒麟	可选	可选	冗余热备	2U
T620-MS	GNSS/手持同步		Rubidium atomic clock	6xRJ45	1Gbps	Linux/麒麟	可选	可选	冗余热备	2U
选件信息:Opt-Q麒麟操作系统; Opt-S纯北斗选件;Opt-X支持信创目录;Opt-ASJ欺骗干扰检测
